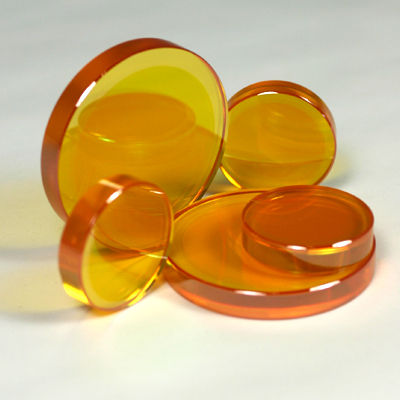

Rear mirror and output couple is the most important elements of laser tube. The combination use of these two makes the laser beam available, the material of RM is silicon, and OC is ZnSe.
No. |
Diameter |
Thickness |
Transmission% |
||
mm |
inch |
mm |
inch |
||
OC--20 20 |
20 |
0.7874 |
3 |
0.118 |
20 |
OC--20 25 |
20 |
0.7874 |
3 |
0.118 |
25 |
OC--20 30 |
20 |
0.7874 |
3 |
0.118 |
30 |
OC--20 35 |
20 |
0.7874 |
3 |
0.118 |
35 |
OC--25 20 |
25 |
0.98425 |
3 |
0.118 |
20 |
OC--25 25 |
25 |
0.98425 |
3 |
0.118 |
25 |
OC--25 30 |
25 |
0.98425 |
3 |
0.118 |
30 |
OC--25 35 |
25 |
0.98425 |
3 |
0.118 |
35 |
OC--30 20 |
30 |
1.1811 |
3 |
0.118 |
20 |
OC--30 25 |
30 |
1.1811 |
3 |
0.118 |
25 |
OC--30 30 |
30 |
1.1811 |
3 |
0.118 |
30 |
OC--30 35 |
30 |
1.1811 |
3 |
0.118 |
35 |
No. |
Diameter |
Thickness |
Radius(meter) |
||||||||
mm |
inch |
mm |
inch |
||||||||
|
20 |
0.79 |
3 |
0.12 |
|
||||||
|
25 |
0.98 |
3 |
0.12 |
|
||||||
|
30 |
1.18 |
3 |
0.12 |
|
