Differential Interference Contrast Tube
• Differential Interference Contrast (DIC) use to see 3D features in 2D Image
• We allows adjustment of polarizer, analyser, Quarter Waveplate and Nomarski prism orientation
Remark :
Working on Directional Independent DIC.
Model Number | With Objective lens | NA | RP (μm) | DOF (μm) | Eyepiece FOV (mm) | 2/3" Format FOV (mm) |
YAG-DICPlan | 5X | 0.15 | 2.2 | 12 | 4.4 | 1.8X 1.3 |
We also provide customize design for 35 mm Image Sensor, if require.

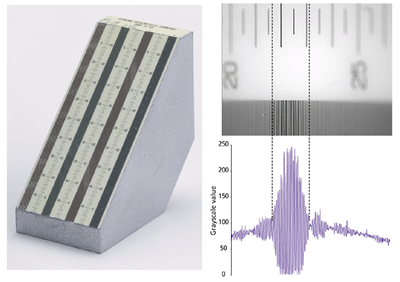

Calibration Target
