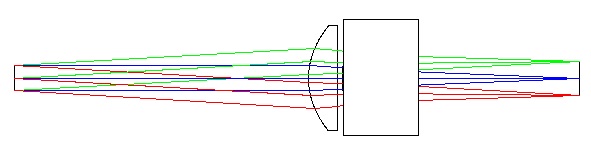

Tube Lens
The Tube Lens is used with an Plan Apo objective lens (Infinite Corrected Objective), and depending on Magnificaton of objective lens and Tube Lens; Whole System magnification is determined.
Based on Mitutoyo Objective lens, the Tube Lens with 200mm focal length is set to 1x magnification.
- Purpose : Machine Vision, Pattern Inspection, LCD Inspection, PCB Inspection, Laser Processing, Laser Repair etc.,
- Camera : Area scan camera, Line scan camera
- Product family : Tube Lens-90,Tube Lens-100,Tube Lens-150,Tube Lens-200
Tube Lens Series
Model | Image Sensor | NA | Field Angle | BWD | EFL | EPD |
Tube Lens-90 | Φ 14.2 mm | 0.06 | ± 4.5° | 85 mm | 90 mm | Φ 11 mm |
Tube Lens-100 | Φ 14 mm | 0.05 | ± 4.0° | 67 mm | 100 mm | Φ 10 mm |
Tube Lens-150 | Φ 23.6 mm | 0.04 | ± 4.5° | 154 mm | 150 mm | Φ 11.5 mm |
Tube Lens-200 | Φ 31.47 mm | 0.03 | ± 4.5° | 218 mm | 200 mm | Φ 11.5 mm |
Tube Lens-200-FULL Frame | Φ 35 mm | 0.03 | ± 5.0° | 190 mm | 200 mm | Φ 11.5 mm |
