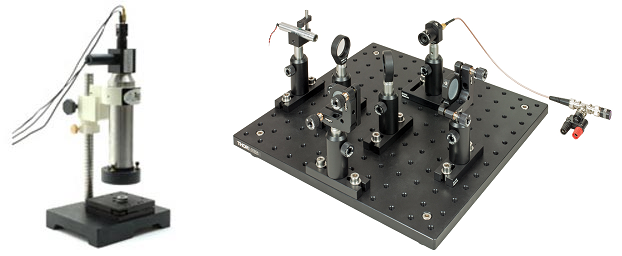

Fizeau Interferometer
For use in Optics Industry and Automobile Industry.
Technical Specifications:
Fizeau-25 | Fizeau-55 | Fizeau-95 | |
Orientation: | Vertical | Vertical | Vertical |
Light Source- He-Ne Laser | < 2 mW | < 2 mW | < 2 mW |
Clear Aperture: | 25 mm | 55 mm | 95 mm |
Reference Flat: | Lambda/10 | Lambda/10 | Lambda/10 |
Work Table (Tilt Table) Dimension: | 3" x 3" | 4" x 4" | 6" x 6" |
1/2” CCD Camera: | 640 x 570 pixels | 640 x 570 pixels | 640 x 570 pixels |
Viewing : Alignment and Fringe viewing | Yes | Yes | Yes |
Dimensions : L x B X H | 300 x 250 x 470 | 300 x 250 x 570 | 300 x 250 x 800 |
Grazing Interferometer
Laser Interferometer
Features:
- Small size (60x60x300 mm)
- Application of notebook
- Easy operation
- Low price
- High resolution
- High accuracy
- Small size measurement optics
Measurement abilities:
- Linear positioning
- Angular positioning
- Rotary positioning
- Straightness
- Flatness
- Squareness
- Velocity
Very good technical parameters allows to use interferometer in scientific laboratory for the precisely positioning and length standard calibration.
An Autocollimator is for measurement of angular tilts whereas the Alignment Telescope is for establishing an accurate line of sight.
Alignment Autocollimator is a combination of Alignment Telescope and Autocollimator.
Autocollimator Mode
Where a collimated light beam is projected out of the Instrument and received back after the reflection from a mirror target.
Telescope Mode
Telescope mode where the lens position is altered to focus a cross line target located at different distances.
The advantage of this Instrument is to measure the angular tilts and the shift of centre location in one setting.
Application:
- Bore straightness
- Alignment of rolls in paper, metal, and plastic mills
- Bearing run out
- Checking parallelism of bearings in a gear box
- Shaft alignments
- Gear box evaluations
Alignment Autocollimator Specifications:
Focal Length: | 163 mm @ 0.5 m to 430 mm @ infinity |
Clear Aperture: | 35 mm diameter |
Eyepiece focal length: | 18 mm (Magnification: 14X) |
Measurement Readout: | Dual Axis Graticule / Micrometer |
Angular Range of Measurement: | +/-10 minutes |
Resolution: | 1 arc sec (Micrometer), 20 arc sec (Graticule) |
Accuracy: | 2 arc sec over 1 minute & 10 arc sec over full range |
Line of sight accuracy: |
20/50 microns at the graticule/image plane
|
Measurement | Range | Resolution | Accuracy |
Distance | 0-30 m | 0,001 µm | ± 0,41 ¼m/m in air ± 0,9 ¼m/m for steel |
Velocity | 0-0,3 m/s (0,1 m/s)* | 0.25 µm/s | 0,1% |
Angular | 0-3600 arc sec | 0,01 arc sec | ±0,1% |
Straightness(with angular optics) | 0 - 12 (± 3 mm flatness measurement range) | 0.02 µm (for 100 mm base) | ± 0,5% |
Straightness measurement (with 3D measurement) | 0-10 m | 0,1 µm | ± 5 ¼m x L(L in meters) |
Straightness measurement (with wollaston prism ) | 0-3m 0,8 - 10 m (± 3 mm flatness measurement range) | 0,01 ¼m 0,1 ¼m | ±1%
± 2,5 % |
Flatness** | 0-12 m (± 3 mm) ± mm flatness measurement range) | 0,02 µm ( for 100 mm base) | ± 0,5 % |
Squareness(3D measurement) | 0-6 m | 1 arc sec | ±2" |
Squareness(Wollaston prism) | ± 1000 arc sec | 0,03 arc sec | ±1% ± (1,5 arc sec) |
Rotary Positioning | ±5 | 2 arc sec | ±0,2 % |
Michelson Interferometer
Model: Michelson Interferometer parts: MI-01 to 07
Special Features:
- Optics: 25 mm diameter (Clear Aperture:20mm), Flatness to »/6 @ 633nm.
- P-IM-02 Kinematic Mirror with Linear movement:
- One division of the micrometer (0.01mm) corresponds to 0.6 ¼ movement of the Mirror.
- P-IM-03 Adjustable Mirror: Coarse Linear travel of 5 mm and movement along a curve for
- inspection of prism
Michelson Interferometer
- Interference Fringes Observation
- Study of Equal Inclination, Equal Thickness & White Light Interference Fringes
- Measurement of Wavelength of the Sodium D-lines
- Measurement of the Wavelength Separation of Sodium D-lines
- Study of Refractive Index of gases at varying pressure
- The Refractive Index of Transparency Slice
Fabry-Perot Interferometer
- The Multi-beam Interference
- Measurement of the Wavelength of He-Ne Laser
- Observation of the Interference of Sodium D-lines
Twyman-Green Interferometer
- Demonstration of the principle of Twyman-Green interferometer
- Checking Principle of defects in Optical Components.(Flat Mirrors, Windows, Prism & Lenses

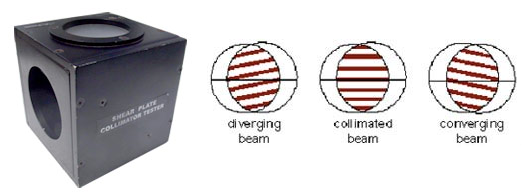

Collimation Tester
Shear plates are ideally suited to determine the proper adjustment for a laser collimation system. They can also be used to measure wavefront radius of curvature, determine wavefront symmetry, measure the power of long-focal-length optics and in some cases analyze wavefront aberrations.
