LED Lighting Systems for Machine Vision

For most applications of LED lighting used in industrial image processing. Lighting is the right choice where quality and variety of available products are concerned. The best quality of the LEDs, extended warranties and high standards of the housings guarantee security for the most varied of applications. LED-lighting can be easily integrated in any application.

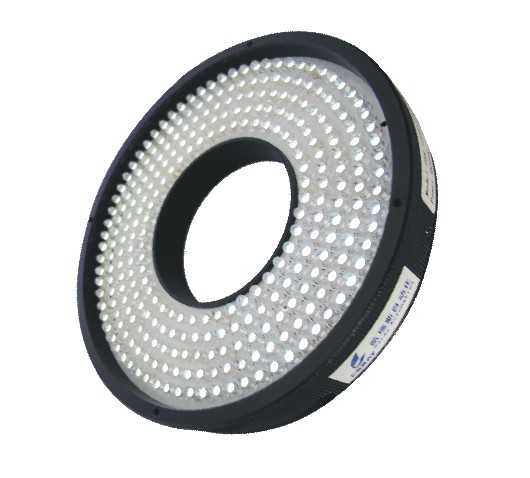

DR-Ring-Light-Direct-Type
LEDs with extremely bright light output are mounted very tightly. 360 degree shadow-free illumination is possible. The Direct Ring Light illuminates the object directly from a at board. Suitable to detect smallest divergences of reactance between target objects. Used for not reecting objects needing a strong lighting.

DR-Ring-Light-Direct-Angle
LEDs with extremely bright light output are mounted very tightly. 360 degree shadow-free illumination is possible. The Ring Light Direct Angle prevents shadowing and focuses the light at an angle to the centre of the object being illuminated. Suitable to detect smallest divergences of reectance between target objects. Used for not reecting objects needing a strong lighting. HCare "half models".

DR-LA-and-HC-LA-Low-Angle-Ring-Light
Illumination with a Horizontally Ring Light (Type LA1) or Low Angle Ring Light (Type LA3) allows 360 degree shadow-free illumination. Low-angle illumination is perfect for edge detection and checking embossing printing or correct positioning, controlling scratches, dirt and grooves on different surfaces. While avoiding reections, ideal for slightly uneven surfaces and scratches. Optional diffusing plate can be mounted to improve illumination eveness. HC-LA are "half models" (120 - 180 degrees)

DM-FHDM-Dome-Light
Dome Lights allow shadow-free uniform light covering 180 degrees. For inspection of objects with glossy or non-at surfaces or foil wrapped objects. The small DM-i50 is cylindric, all the others dome-shaped and illuminated from below. FHDM are equipped with high brightness LEDs to provide 360 degrees uniformity and larger coverage on the object area. FHDM operate at constant current sources in strobe mode.

KR--FR-Diffuse-Front-Light
Ring-shaped light with overhead diffuse light eliminates LED glares and shadows for even illumination. Best for preventing halo effect. Coating inspection and burr inspection of the molding, soldering inspection and inspection of board parts possible with coned KR-type. Discus FR-type with its low height is prefered for very limited space.

-Diffuse-Back-Light-
Power-saving back light system with a very thin design and a very uniform surface light emission profile. Just having a casing height of 7-10 mm permittes the application even with very limited mounting space. For inspection of dimension and shape of lead frame, visual inspection of dimenison and shape of electronic parts.
IC lead for gauging inspection for TSSOP, SOIC, DIP, SC7O, SOT, QFP

DL-TP-High-Brightness-Diffuse-Back-Light
Slim-type lighting with LEDs mounted at the bottom of the light guide to brighten it.
LEDs are arranged at high intensity to produce high luminosity.
Light from chip LEDs packed into a at circuit board passes through a diffusion plate and illuminates the work from behind as a silhouette. Major applications are: inspection of dimension and shape of lead frame / visual inspection of dimenison and shape of electronic parts / IC lead for growing inspection for TSSOP, SOIC, DIP, SCTO, SOT, QFP.

FV--FHFV-Coaxial-Light
Coaxial is a uniform light that runs perpendicular with camera axis across the entire field of view makes on-axis illumination system.
FHFV possess High Power-SMDs.
Suitable to apply on at object surface with specular or mirror surface / wafer level or dice positioning guiding, or pick and place process applications / alignment mark on the board / inspection for cosmetic applications, scratches on object, dented or micro slug.

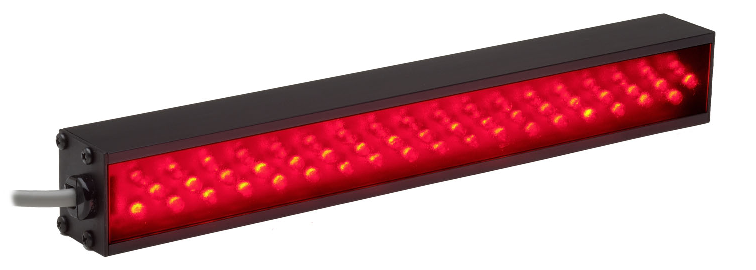

DL-Bar-Light
Bar-shaped lighting using high-intensity LEDs. They create optimum oblique lighting conditions. exible installation to enable a wide range of applications. Usable as high intensity surface lighting. Reections can be controlled by the included diffusion plate. Major applications are: Crack/exterior inspection of molding / trimming/ forming inspection of IC lead / exterior inspection of connector / character inspection of chip part.

FFPR-FFPQ-Low-Angle-Diffuse-Light
Low angle ring diffuse light and low angle square diffuse light enables characters and defects to be uniformly illuminated with no LED glare. Soft, even and diffused lighting on shiny objects. Best for preventing the halo effect. The shadowless, low angle square type is perfect for square shaped objects. Major applications are: inspection for IC characters / IC lead inspection within the embossed tape / inspection for IC void / IC orientation identification, NG mark inspection.

FHLV--SP--FHSP-High-Power-Spot-Light
FHLV (High luminosity spot light): Proprietary collector optics and light guides for maximum illuminance. Small and lightweight for easy handling. Stable illumination when used with a dedicated constant current power source. Suitable for coaxial episcopic lighting and spot lighting. Can be mounted on movable modules.
NEW FHSP-Si60N-W have a built-in resistor.
SP-Spot light suitable to use in limited space and long working distance. Best for reading bar code/2D code.

LN--FHLN-Line-Light
High brightness LED Line Light is focusing with an cylindrical lense. A very intense illumination suited for the use with line-scan cameras. FHLN possess High Power-SMDs.
